Active Suspension: F1's Banned Superweapon and the Engineering That Replaced It

In our last post, we dove into the vibration nightmares plaguing Formula 1 - from the porpoising chaos of 2022 to Honda literally shaking Aston Martin's batteries apart in 2026. George Russell's quote stuck with me: "If the active suspension was there, it could be solved with a click of your fingers."

That got me thinking. Active suspension is one of the most powerful vibration control technologies ever deployed in motorsport. It dominated F1 so completely that the FIA had to ban it. And the story of how teams have tried to replicate its benefits with passive devices - including one of the most secretive inventions in racing history - is a masterclass in vibration engineering.

So let's talk about F1's banned superweapon, the control theory that made it work, and the brilliant mechanical devices that replaced it.

---

What Is Active Suspension, Really?

Active suspension replaces passive springs and dampers with a feedback control system: sensors measure the car's state, the ECU computes the desired response, and hydraulic actuators generate the commanded force.

Strip away the F1 glamour, and active suspension is a feedback control system. Instead of passive springs and dampers that react to road inputs, you have actuators that command the car's position relative to the ground. The car doesn't bounce over bumps - it flies over them on a cushion of hydraulic force, maintaining whatever ride height the computer decides is optimal.

A conventional passive suspension has two components at each corner: a spring (force proportional to displacement) and a damper (force proportional to velocity). The equation of motion for a quarter-car model is:

$m\ddot{x} + c\dot{x} + kx = F_{road}$

Where $m$ is the sprung mass, $c$ is the damping coefficient, $k$ is the spring rate, and $F_{road}$ is the input from the road surface. The system responds passively - it can only react to disturbances after they happen, and the response is entirely determined by the fixed values of $c$ and $k$.

An active system replaces this with:

$m\ddot{x} = F_{actuator}(t) + F_{road}(t)$

Now the actuator force $F_{actuator}$ is a function of time, commanded by a control algorithm that processes sensor data in real time. The controller can generate any force profile it wants - push down into corners, lift over bumps, hold perfectly flat on straights. The physics hasn't changed, but the car's response is no longer a slave to its spring and damper characteristics.

If you've played with our SDOF Calculator, you know that a passive system's transmissibility is fixed by its natural frequency and damping ratio. Active suspension breaks that constraint entirely.

---

The Lotus Years: Where It All Began

The story starts with Peter Wright, an aerodynamicist at Lotus. In the late 1970s, Wright was one of the pioneers of ground effect aerodynamics - the idea that you could shape the underside of the car like an inverted wing to generate massive downforce. But ground effect had a problem: it was extremely sensitive to ride height. Even small changes in the gap between the floor and the track surface caused huge swings in downforce, making the car unpredictable and dangerous.

Wright's insight was elegant: if the problem is that ride height changes affect aerodynamics, then control the ride height. Don't let the car move relative to the ground. Keep it locked at the optimal position regardless of what the road surface, cornering loads, or braking forces are doing.

Lotus first tested the concept on the Lotus 92 in 1983. It was crude - heavy, unreliable, and power-hungry. The hydraulic system drained so much energy from the engine that the car was often slower than it would have been with conventional springs. But the principle was proven. [1]

By 1987, the technology had matured enough for the Lotus 99T. Ayrton Senna drove it to victories at Monaco and Detroit - two street circuits where the bumpy surfaces and tight corners were exactly the conditions where active suspension shone brightest. The system used hydraulic actuators controlled by an onboard computer that processed data from ride height sensors and accelerometers at each corner. At Monaco, Senna won by over 33 seconds. [2]

But Lotus was a small team with limited resources, and the system remained temperamental. It would take a much larger operation to truly unlock the technology's potential.

---

The Williams FW14B: Engineering Perfection

The Williams FW14B (1992) was designed from the ground up around active suspension. Hydraulic actuators at each corner replaced conventional springs and dampers, controlled by an onboard computer processing data from ride height sensors, accelerometers, and gyroscopes.

That operation was Williams Grand Prix Engineering.

Under the technical direction of Patrick Head and the aerodynamic genius of Adrian Newey, Williams set out to build a car where every system worked in concert. The FW14B wasn't just a car with active suspension bolted on - it was designed from the ground up around the concept that the computer would control the car's attitude at all times. [3]

How the System Worked

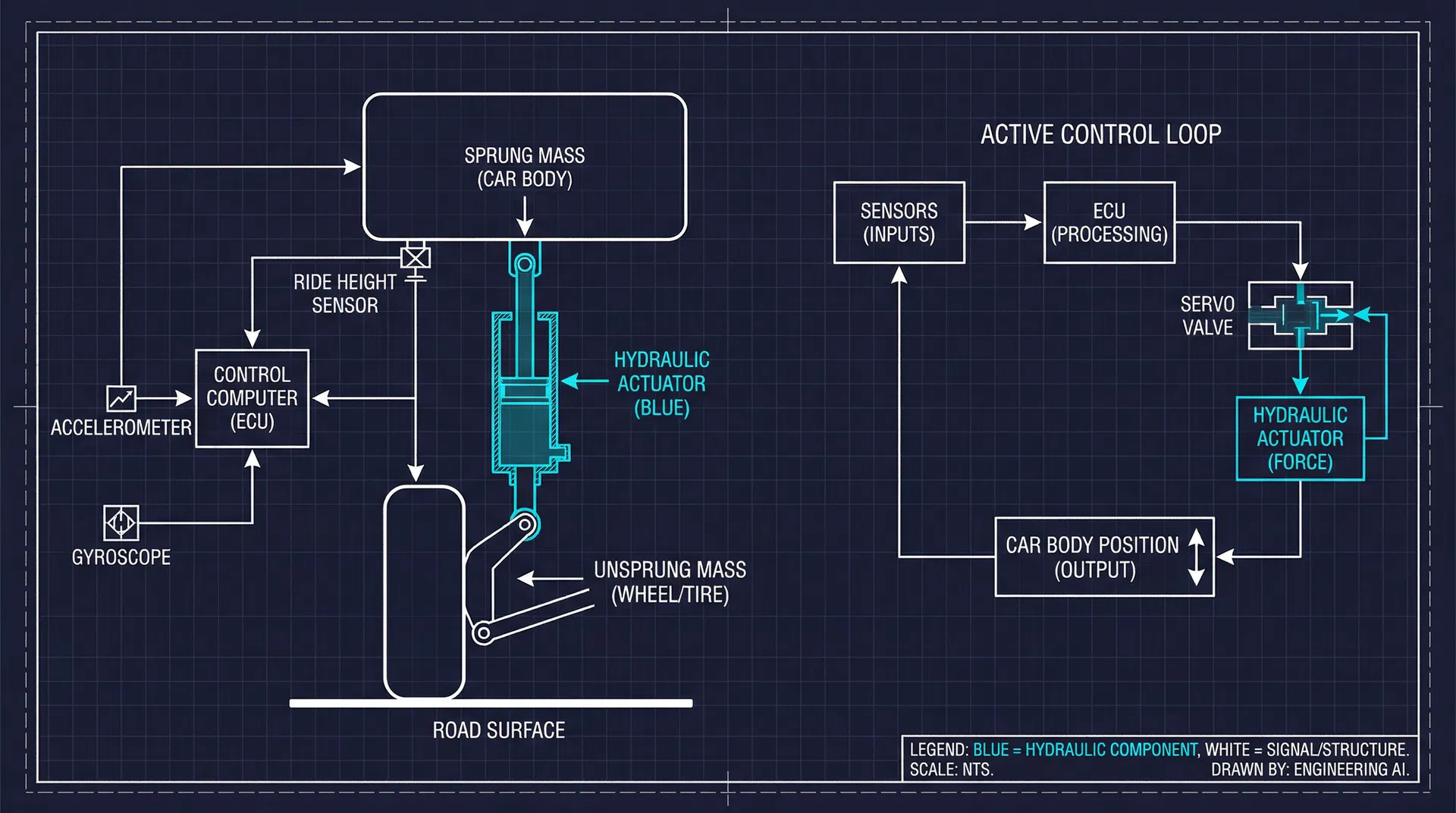

Each corner of the FW14B had a hydraulic actuator replacing the conventional spring and damper. The actuator was controlled by a Moog servo valve - a precision hydraulic valve that could modulate pressure with extreme accuracy and speed. The system operated at around 200 bar (roughly 2,900 psi) of hydraulic pressure, supplied by an engine-driven pump. [3]

The sensor suite included:

• Ride height sensors at each corner (measuring the gap between chassis and ground)
• Accelerometers on the sprung and unsprung masses
• Gyroscopes for pitch and roll rate
• Wheel speed sensors for velocity estimation
• Steering angle sensor for driver input

All of this data fed into an onboard computer running the control algorithm at high frequency. The computer calculated the desired force at each corner and commanded the servo valves accordingly. The response time was fast enough to counteract road inputs before the driver even felt them.

The Control Architecture

The FW14B's control system was essentially a multi-input, multi-output (MIMO) controller managing four coupled actuators simultaneously. The controller had to manage three primary body modes:

Heave (vertical translation): The entire car moving up and down together. This is what determines ride height and is critical for aerodynamic performance.

$F_{heave} = K_h(x_{ref} - x_{actual}) + C_h\dot{x}_{actual}$

Pitch (rotation about the lateral axis): The car tilting nose-up or nose-down, which happens under braking and acceleration.

$M_{pitch} = K_p(\theta_{ref} - \theta_{actual}) + C_p\dot{\theta}_{actual}$

Roll (rotation about the longitudinal axis): The car leaning in corners.

$M_{roll} = K_r(\phi_{ref} - \phi_{actual}) + C_r\dot{\phi}_{actual}$

Each mode had its own reference value (what the engineers wanted), gain constants ($K$ and $C$), and the controller distributed the required forces across all four actuators to achieve the desired body attitude simultaneously. The beauty of the system was that these modes could be controlled independently - you could have very stiff roll control (keeping the car flat in corners) while maintaining compliant heave control (absorbing bumps smoothly).

The Results

The numbers speak for themselves. In 1992, Nigel Mansell and the FW14B won 10 of 16 races, took pole position 15 times, and clinched the championship with five races still remaining. Mansell's teammate Riccardo Patrese finished second in the championship. The car was estimated to be roughly 2 seconds per lap faster than the next best competitor at most circuits. [3]

The active suspension allowed Newey to run the car at extremely low ride heights with aggressive aerodynamic configurations that would have been impossible with passive suspension. The floor stayed at its optimal distance from the track regardless of speed, fuel load, or cornering forces. The result was more consistent downforce, better tire contact, and a car that was simply in a different league.

---

The Skyhook Concept: The Ideal That Active Suspension Chases

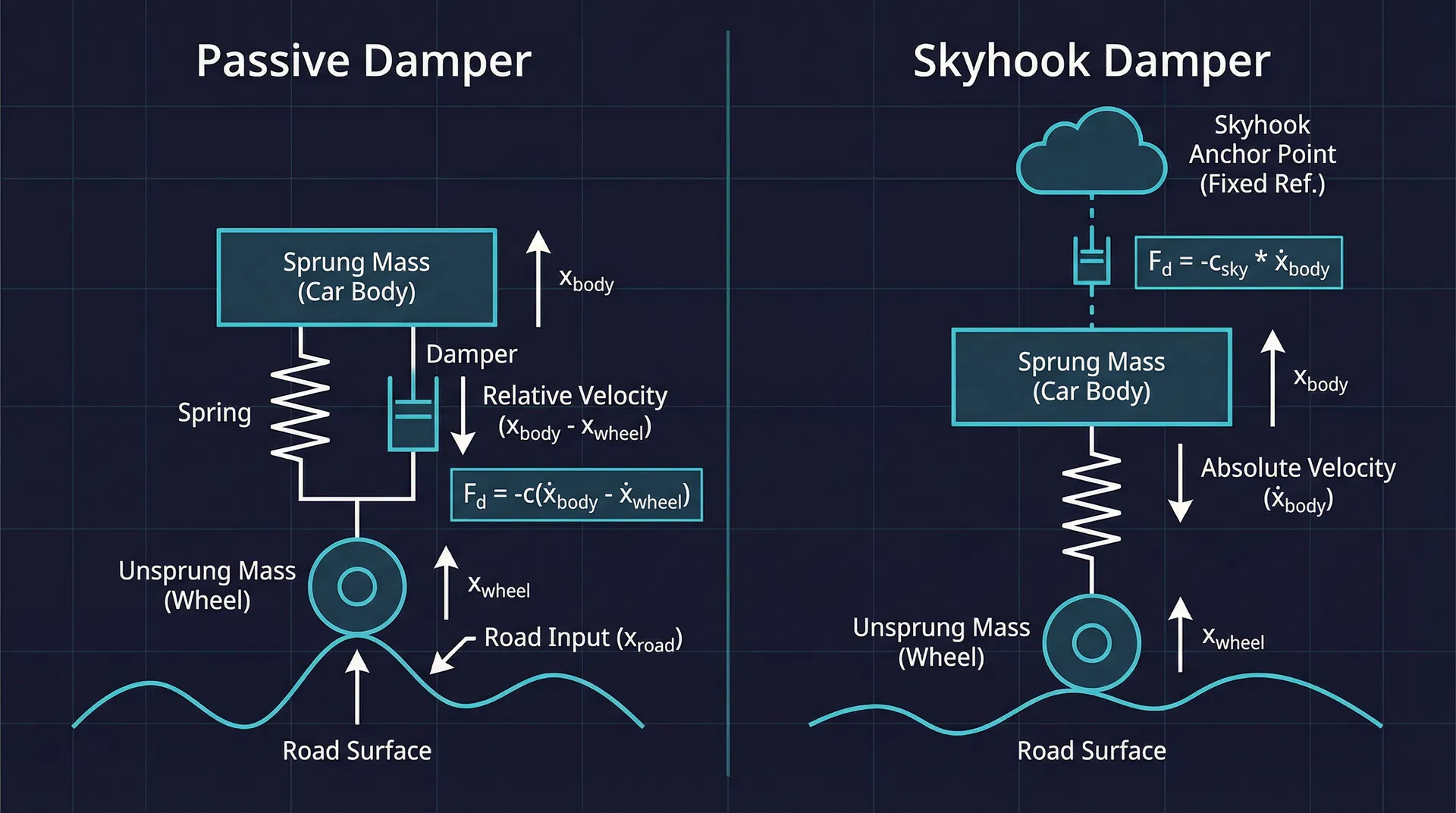

The skyhook concept: a passive damper (left) resists relative motion between body and wheel, creating an inherent ride/handling trade-off. A skyhook damper (right) resists absolute body motion, eliminating that trade-off entirely.

To understand why active suspension is so effective, you need to understand the skyhook damper - an idealized concept that represents the theoretical optimum for body motion control.

Imagine you could attach a damper between the car body and a fixed point in the sky. This "skyhook" damper would resist any motion of the body relative to an absolute reference frame - not relative to the wheel or road, but relative to the universe itself.

The skyhook damping force is:

$F_{sky} = -c_{sky} \cdot \dot{x}_{body}$

Where $\dot{x}_{body}$ is the absolute velocity of the car body (not the relative velocity between body and wheel). This is fundamentally different from a conventional damper, where the force depends on the relative velocity between the sprung and unsprung masses:

$F_{passive} = -c \cdot (\dot{x}_{body} - \dot{x}_{wheel})$

The difference matters enormously. A passive damper faces an inherent trade-off: if you increase damping to control body motion, you also increase the force transmitted from the wheel to the body over bumps. You can't have both a smooth ride and tight body control. The skyhook concept eliminates this trade-off because the damping force only depends on body motion - it doesn't care what the wheel is doing.

Of course, you can't actually attach a damper to the sky. But with an active actuator and an accelerometer measuring absolute body acceleration (which you integrate to get absolute velocity), you can simulate a skyhook damper. The actuator generates the force that a sky-mounted damper would produce. This is exactly what the Williams FW14B's control system was doing, among other things.

There's a complementary concept called groundhook damping, where the imaginary damper connects the wheel to the ground:

$F_{ground} = -c_{ground} \cdot \dot{x}_{wheel}$

This minimizes wheel hop and maximizes tire contact with the road - critical for grip. An active system can implement both skyhook and groundhook simultaneously, which is physically impossible with any passive device.

---

The Ban: Too Fast, Too Dominant, Too Expensive

By 1993, Williams continued their dominance with the FW15C (Alain Prost winning the championship), and other teams were scrambling to develop their own active systems. McLaren, Ferrari, and others had versions running, but none matched Williams' sophistication.

Then came the ban.

For the 1994 season, the FIA prohibited active suspension along with traction control, ABS, and other electronic driver aids. The official reasoning was multifaceted: the cars were getting dangerously fast through corners, the technology was creating an unsustainable cost arms race, and there was a philosophical concern that the computer was driving the car more than the human. [4]

The timing was tragically underscored by the deaths of Ayrton Senna and Roland Ratzenberger at Imola in 1994 - the first season without active suspension. While the exact causes of those accidents were complex, the removal of electronic aids that had been masking the cars' handling characteristics was widely discussed as a contributing factor. The cars were suddenly harder to drive at the limit, and the safety margins that active suspension had provided were gone.

---

The Inerter: F1's Secret Third Element

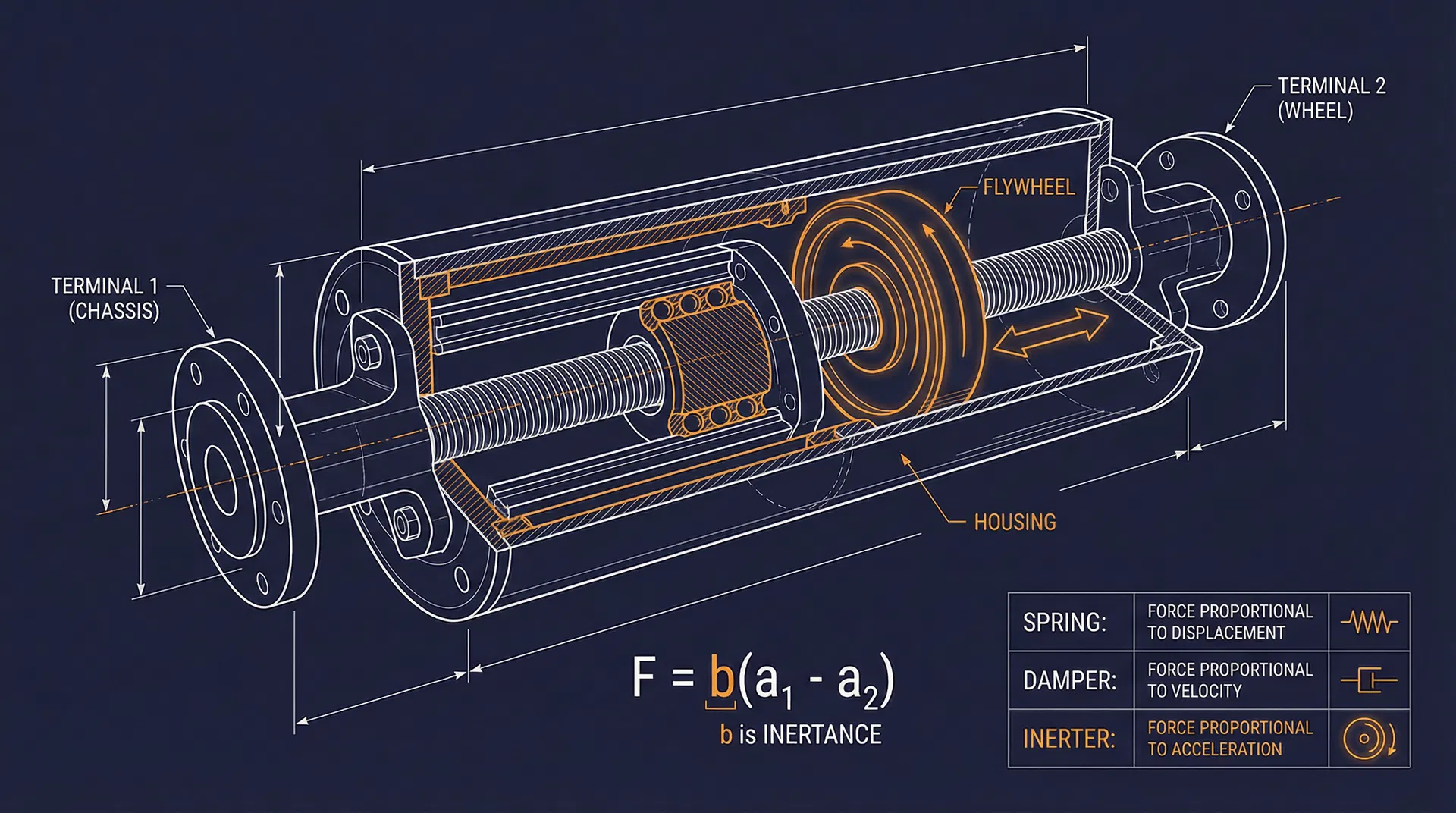

The inerter: a two-terminal device where force is proportional to relative acceleration. A small flywheel with high gearing produces hundreds of kilograms of effective inertance while weighing only grams - completing the mechanical-electrical analogy that had been missing for over a century.

With active suspension banned, teams were stuck with passive springs and dampers. For over a decade, the fundamental suspension toolkit remained unchanged. Then, in 2002, a Cambridge University professor named Malcolm Smith had a breakthrough that would quietly revolutionize motorsport suspension design. [5]

Smith was working on a theoretical problem in mechanical network synthesis - the study of how mechanical systems relate to electrical circuits. There's a well-known analogy between mechanical and electrical components:

For decades, engineers had springs and dampers but no mechanical element that produced a force proportional to acceleration. The electrical world had capacitors, but the mechanical world was missing its equivalent. Smith realized this gap and invented the inerter - a two-terminal device where the applied force is proportional to the relative acceleration between its endpoints: [5]

$F = b(\ddot{x}_1 - \ddot{x}_2)$

Where $b$ is the inertance, measured in kilograms. The device typically uses a flywheel connected to a rack-and-pinion or ball screw mechanism. When the two terminals move relative to each other, the linear motion is converted to rotation of the flywheel, which stores kinetic energy. The flywheel's rotational inertia resists changes in relative velocity - exactly like a capacitor resists changes in voltage.

The genius is in the gearing. A small flywheel with a high gear ratio can produce an effective inertance of hundreds of kilograms while weighing only a few hundred grams. This means you can add significant dynamic mass to the suspension system without adding significant real mass - something that would be impossible with a conventional tuned mass damper.

McLaren's Secret Weapon

McLaren was the first F1 team to recognize the inerter's potential. Working with Smith's team at Cambridge, they developed a race-ready inerter and codenamed it the "J-Damper" to conceal its true nature. The "J" stood for nothing in particular - it was deliberately misleading. [5]

The device was first raced at the 2005 Spanish Grand Prix, where Kimi Räikkönen won. McLaren kept the technology secret for over a year, and when Renault eventually obtained a J-Damper unit (reportedly through espionage, which became part of the infamous "Spygate" scandal), they initially couldn't figure out what it did. Renault's engineers assumed it was some kind of tuned mass damper and were baffled by its construction. [5]

Why the Inerter Matters for Vibration Control

With the inerter, suspension engineers finally had the complete toolkit. A spring-damper-inerter network can implement transfer functions that are impossible with springs and dampers alone. Consider the standard quarter-car suspension problem: you want to minimize body acceleration (ride quality) while keeping tire deflection small (grip). With only springs and dampers, there's a fundamental trade-off between these objectives. The inerter breaks that trade-off.

For example, placing an inerter in parallel with the suspension damper creates a system where the effective damping increases with frequency. At low frequencies (body modes, 1-3 Hz), the inerter has minimal effect and the suspension behaves normally. At higher frequencies (wheel hop, 10-15 Hz), the inerter adds significant impedance, reducing wheel oscillation and improving tire contact. This frequency-dependent behavior is exactly what active suspension achieves through its control algorithm - but the inerter does it passively, with no sensors, no computer, and no power consumption.

The inerter was so effective that it quickly spread to every team on the grid. By 2010, it was a standard component in every F1 suspension system. Its removal from the regulations in 2022 - the same year ground effect returned and porpoising became a crisis - was widely criticized as removing a critical vibration management tool at exactly the wrong time.

---

The Modern F1 Suspension: A Passive Orchestra

Today's F1 suspension (as of the 2026 regulations) is a sophisticated assembly of passive components, each tuned to manage specific aspects of the car's dynamic behavior. While active ride height control is now permitted for the heave mode, the full active suspension of the FW14B era remains banned under Article 10.2.4 of the technical regulations. [6]

Here's what teams are working with:

The Third Element (Heave Spring)

The "third element" or heave spring is a device that connects the left and right sides of the suspension and only activates when both sides move in the same direction (heave motion). It has no effect on roll. This allows engineers to set the heave stiffness independently of the roll stiffness - something that's impossible with conventional springs alone.

The heave spring is critical for controlling ride height and managing the aerodynamic platform. Combined with bump stops (progressive-rate rubber elements that engage at extreme travel), it creates a non-linear spring characteristic that keeps the floor at its optimal height across a wide range of conditions.

Push-Rod vs. Pull-Rod

The mechanical linkage that connects the wheel to the spring and damper assembly comes in two flavors: push-rod (where the rod is in compression) and pull-rod (where it's in tension). The choice affects packaging, center of gravity, and the mechanical advantage ratio.

For 2026, the front suspension layout has become a key differentiator. Most teams have historically used push-rod front suspension, but the new regulations' emphasis on lower ride heights and reduced aerodynamic sensitivity has prompted some teams to explore pull-rod configurations at the front - a layout that lowers the center of gravity and changes the suspension geometry in subtle but important ways. [7]

Active Ride Height (Not Active Suspension)

The 2026 regulations permit electronically controlled ride height adjustment - but this is not the same as the full active suspension of the 1990s. The system can adjust the car's static ride height in response to speed and aerodynamic conditions, but it cannot actively counteract individual bumps or dynamically control each corner independently in real time. Think of it as a slow-acting trim system rather than a high-bandwidth vibration controller. [6]

The distinction matters. The FW14B's system operated at frequencies high enough to counteract individual road inputs - it was a true vibration control system. The 2026 ride height system operates on a much slower timescale, adjusting the car's baseline position but leaving the fast dynamics to the passive springs and dampers.

---

Active Aero: The New Battlefield

If the FIA won't let teams actively control the suspension, what about actively controlling the aerodynamics? That's exactly what the 2026 regulations introduce with the X-Mode and Z-Mode active aerodynamic systems. [8]

X-Mode adjusts the rear wing configuration for straight-line speed versus cornering downforce - essentially a more sophisticated version of DRS. The wing elements can change angle to reduce drag on straights and increase downforce in corners.

Z-Mode is more interesting from a vibration perspective. It adjusts the front wing elements to manage the aerodynamic balance of the car. By changing the front wing's angle of attack, the system can shift the center of pressure forward or backward, affecting the car's pitch behavior and, indirectly, its ride height sensitivity.

In a sense, the 2026 regulations have moved the active control from the suspension to the aerodynamics. Instead of using hydraulic actuators to keep the car flat, teams use moveable aerodynamic surfaces to manage the forces acting on the car. The physics is different, but the goal is the same: decouple the car's performance from the disturbances acting on it.

---

The Engineering Trade-Off That Never Goes Away

Whether you're designing the Williams FW14B in 1992 or a 2026 F1 car, the fundamental vibration engineering challenge is the same: you need to control body motion for aerodynamic performance while maintaining tire contact for grip, all within strict weight and packaging constraints.

Active suspension solves this by breaking the passive trade-off - it can simultaneously minimize body motion AND maximize tire contact because the actuator force is independently controlled. Every passive solution, no matter how clever, is ultimately constrained by the fact that the same physical element must handle both functions.

The inerter narrowed the gap significantly. The heave spring and bump stop system helps manage the specific problem of ride height control. Active ride height adjustment adds another degree of freedom. And active aerodynamics attack the problem from the other side - instead of controlling how the car responds to aero loads, they control the aero loads themselves.

But none of these passive and semi-active solutions fully replicate what active suspension could do. The FW14B's ability to maintain a perfectly flat aerodynamic platform while providing compliant wheel control over bumps remains unmatched by any legal system in modern F1. It's a testament to the power of feedback control - and a reminder of why the FIA keeps it locked away.

---

The Bottom Line

Active suspension in F1 is one of the great "what if" stories in engineering. For two glorious seasons, it showed what's possible when you give a computer full authority over a car's dynamics. The Williams FW14B didn't just win races - it rendered the competition irrelevant, demonstrating a level of vehicle control that passive systems still can't match three decades later.

The technologies that replaced it - inerters, heave springs, active ride height, active aerodynamics - are each brilliant in their own right. The inerter, in particular, stands as one of the most elegant inventions in mechanical engineering: a device that completed a theoretical framework dating back to the 19th century and immediately found practical application at the highest level of motorsport.

But the dream of full active suspension never quite dies. Every time an F1 car bounces, porpoises, or shakes itself apart, someone in the paddock mutters about how active suspension would fix it. And they're right - it would. The physics is clear, the control theory is well understood, and the technology is more capable now than it was in 1992.

For now, though, the FIA says no. And so the engineers keep innovating within the constraints, finding new ways to approximate what a hydraulic actuator and a fast computer could do effortlessly. It's frustrating, it's expensive, and it produces some of the most creative engineering solutions on the planet.

That's Formula 1 for you.

---
