When Race Cars Shake Themselves Apart: Vibration Problems in Formula 1

Formula 1 cars are the most finely engineered machines on the planet. Every gram is optimized, every surface sculpted for speed, and every component pushed to its absolute limit. So what happens when something starts vibrating that shouldn't be? Spoiler: it gets ugly, fast.

Vibration in F1 isn't just an annoyance - it's a career-ending, race-losing, multi-million-dollar engineering nightmare. And right now, one of the biggest stories heading into the 2026 season is Honda literally shaking Aston Martin's batteries to death. But before we get to that drama, let's talk about why vibration is such a big deal in the world of open-wheel racing, and the wild engineering tricks teams use to fight it.

---

The Vibration Landscape: Where Does It All Come From?

An F1 car is basically a controlled explosion strapped to four wheels, screaming down the road at 350 km/h. There's no shortage of vibration sources:

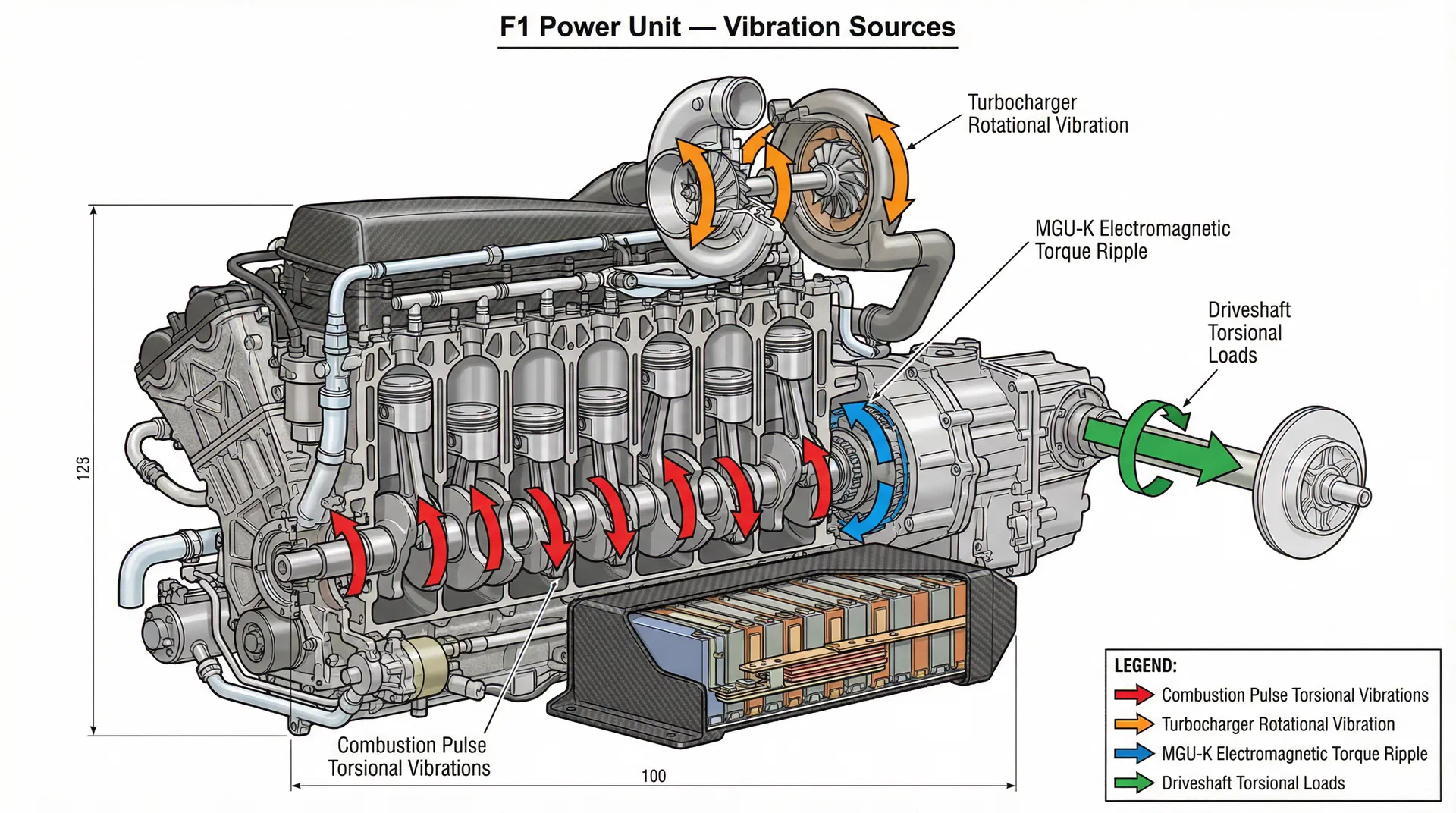

Cutaway of an F1 V6 turbo-hybrid power unit showing the four primary vibration sources: combustion pulse torsional vibrations (red), turbocharger rotational vibration (orange), MGU-K electromagnetic torque ripple (blue), and driveshaft torsional loads (green).

The Engine. The 1.6-liter turbocharged V6 at the heart of every F1 car spins up to around 15,000 RPM. Each cylinder fires in sequence, and those combustion pulses send torsional vibrations rippling through the crankshaft. Think of the crankshaft as a long, thin metal rod being twisted back and forth thousands of times per second - because that's essentially what's happening. At certain RPMs, the firing frequency lines up with the crankshaft's natural frequency, and you hit what engineers call a critical speed. That's where things can get destructive in a hurry.

The Aerodynamics. Modern F1 cars generate enormous downforce - we're talking multiple times the car's own weight at high speed. But that downforce isn't constant. It changes with ride height, yaw angle, and airflow conditions. When the aero loads fluctuate rapidly, the car's structure and suspension have to absorb those oscillations. This is where the infamous porpoising problem came from in 2022 (more on that in a minute).

The Brakes. F1 brake discs are made from carbon-carbon composite and routinely hit temperatures over 1,000°C - roughly the temperature of molten lava. That extreme thermal cycling can cause uneven wear and disc deformation, leading to brake judder - a vibration you feel through the pedal and steering wheel during heavy braking zones.

The Road Surface. Even the smoothest race circuits have bumps, curbs, and surface changes. At 300+ km/h, even tiny imperfections create high-frequency inputs into the suspension. The car has to manage all of this while keeping the tires in their optimal operating window.

If you've played around with our SDOF Calculator, you know that every system with mass and stiffness has a natural frequency. An F1 car has hundreds of natural frequencies - the chassis, the suspension, the engine mounts, the wings, the steering column, the driver's seat. The engineering challenge is making sure none of those natural frequencies get excited by the operational loads. When they do? That's when parts fail, drivers lose confidence, and races are lost.

---

The Porpoising Era: When F1 Cars Bounced Down the Straights

Let's rewind to 2022. Formula 1 introduced radical new ground effect aerodynamic regulations, bringing back venturi tunnels under the car to generate downforce. The idea was to reduce the "dirty air" behind cars and improve racing. It worked - but it also introduced one of the most dramatic vibration problems in modern F1 history.

Porpoising is a self-excited oscillation. Here's how it works: as the car accelerates, the ground effect floor generates increasing downforce, pulling the car closer to the track surface. The closer the floor gets to the ground, the more downforce it makes - it's an exponential relationship. But at some critical ride height, the airflow under the floor "chokes" or stalls. Downforce vanishes almost instantly, and the car shoots back up. Once the ride height increases enough for the airflow to reattach, downforce comes back, the car gets sucked down again, and the whole cycle repeats.

The porpoising cycle: a self-excited oscillation driven by the nonlinear interaction between ground effect aerodynamics and suspension stiffness.

This happened multiple times per second on the straights. Carlos Sainz described it vividly: "When we are doing 300 km/h, and the car is jumping 40 mm up and down, it's very disturbing and annoying." [1]

From a vibration standpoint, porpoising is fascinating. It's a limit cycle oscillation - a self-sustaining vibration driven by the nonlinear interaction between aerodynamic forces and structural stiffness. The frequency depends on the car's mass, suspension stiffness, and the aerodynamic characteristics of the floor. It's the kind of problem that would make any vibration engineer's eyes light up (and any team principal's blood pressure spike).

Mercedes was hit the hardest. Their W13 bounced so violently that Lewis Hamilton could barely get out of the car after the 2022 Azerbaijan Grand Prix. George Russell publicly called for the return of active suspension, saying "If the active suspension was there, it could be solved with a click of your fingers." [1]

Teams attacked the problem from multiple angles. Some added structural stays to stiffen the floor edges. Others trimmed the outboard sections of the floor to reduce sensitivity. Many simply raised the ride height and stiffened the suspension - sacrificing downforce for stability. The FIA eventually stepped in with Technical Directive TD039, which introduced floor stiffness requirements and an oscillation metric to limit the severity of bouncing.

The irony? The 2022 regulations had also banned inerters (also known as J-dampers) - a brilliant vibration control device that had been part of F1 suspension systems since McLaren secretly introduced them in 2005. An inerter is essentially a mechanical device that resists acceleration proportional to relative acceleration, like a flywheel on a rack and pinion. It's the rotational equivalent of a tuned mass damper, and it was incredibly effective at controlling specific vibration frequencies in the suspension. Taking that tool away and then introducing a car concept prone to oscillation was... well, let's call it an interesting regulatory decision.

The good news? For 2026, active suspension is back. Teams can now electronically control ride height and damping in real time, which should eliminate porpoising as a concern. But as we're about to see, 2026 has brought an entirely new vibration nightmare.

---

The Honda-Aston Martin Crisis: Shaking Batteries to Death

This is the story dominating the F1 paddock right now, and it's a textbook case study in structural dynamics coupling.

Honda and Aston Martin entered 2026 as a new partnership, with Honda supplying the power unit and Aston Martin building the chassis. The AMR26 was delivered late to the Barcelona shakedown, and things went downhill from there. Across two test weeks in Bahrain, Aston Martin managed just 2,115 km of running - barely a third of what Mercedes covered (21,544 km) and roughly half of the next-lowest team. [2]

The culprit? Abnormal vibrations from the V6 engine were destroying the battery system.

Pre-season testing mileage comparison, 2026. Data from Motorsport.com. [2]

Ikuo Takeishi, head of Honda's HRC four-wheel racing department, explained: "The abnormal vibrations observed during testing caused damage to the battery system, which was the primary reason for the stoppage. We stopped the car because we felt it shouldn't continue running in that state... it was dangerous." [2]

Here's where it gets really interesting from an engineering perspective. The 2026 regulations dramatically increased the electrical component of the power unit. The MGU-K now produces 350 kW (up from 120 kW in the previous era), and the MGU-H has been eliminated entirely. That means the battery is much larger and heavier than before. Honda's design splits the battery and control electronics into two tiers - a more aggressive packaging solution than the regulations strictly require - and it's all contained within the survival cell. [3]

On top of that, Aston Martin reportedly requested a shorter, more compact overall engine length, which forced Honda to redesign how peripheral equipment is integrated into the car. [3]

So what's happening? Takeishi described it this way: "You could think of it as the battery pack being shaken within the vehicle body. Essentially, the area where the battery pack is attached is vibrating." [2]

This is a structural resonance coupling problem.

Source-Path-Receiver: V6 combustion pulses travel through the engine mounts and chassis structure to the battery mounting area, where structural resonance amplifies the vibration. The V6 engine produces vibration at specific frequencies determined by its RPM and firing order. Those vibrations propagate through the engine mounts and chassis structure to the battery mounting area. If the natural frequency of the battery mounting system is close to any of the engine's excitation frequencies, you get amplification - the structure vibrates much more than expected, and the battery gets shaken apart.

The critical detail is that this didn't show up on the dyno. Honda tested the power unit extensively at their Sakura facility before it ever went into a car. But a dyno test doesn't replicate the full structural dynamics of a complete car - the chassis, suspension, gearbox casing, and all the other components that form the vibration transmission path. It's only when everything is bolted together that the coupling between the engine excitation and the battery system's response becomes apparent.

Takeishi acknowledged the complexity: "If the cause were pinpointed to something like the transmission or the engine, it would be much easier to tackle. However, I suspect multiple components are interacting to generate the vibration. Given that, it's unclear whether fixing one part alone will resolve it." [2]

HRC boss Koji Watanabe was blunt: "The wall we face as a result of these tests is certainly a high one." [4]

As of early March 2026, Honda is running the battery on a test bench with the monocoque mounted at Sakura, trying multiple countermeasures simultaneously - vibration isolation, structural modifications, and analysis. They're aiming to reduce the vibration before the Australian GP season opener, but Takeishi has set a more realistic target of getting the car competitive by the Japanese Grand Prix at Suzuka - the third race of the season. [2]

---

Engineering Strategies: How F1 Teams Fight Vibration

So how do you fight vibration in a machine where every gram counts and you can't just add rubber mounts everywhere? F1 teams use some incredibly clever approaches:

Torsional Vibration Dampers

Every F1 engine uses some form of torsional vibration damper on the crankshaft.

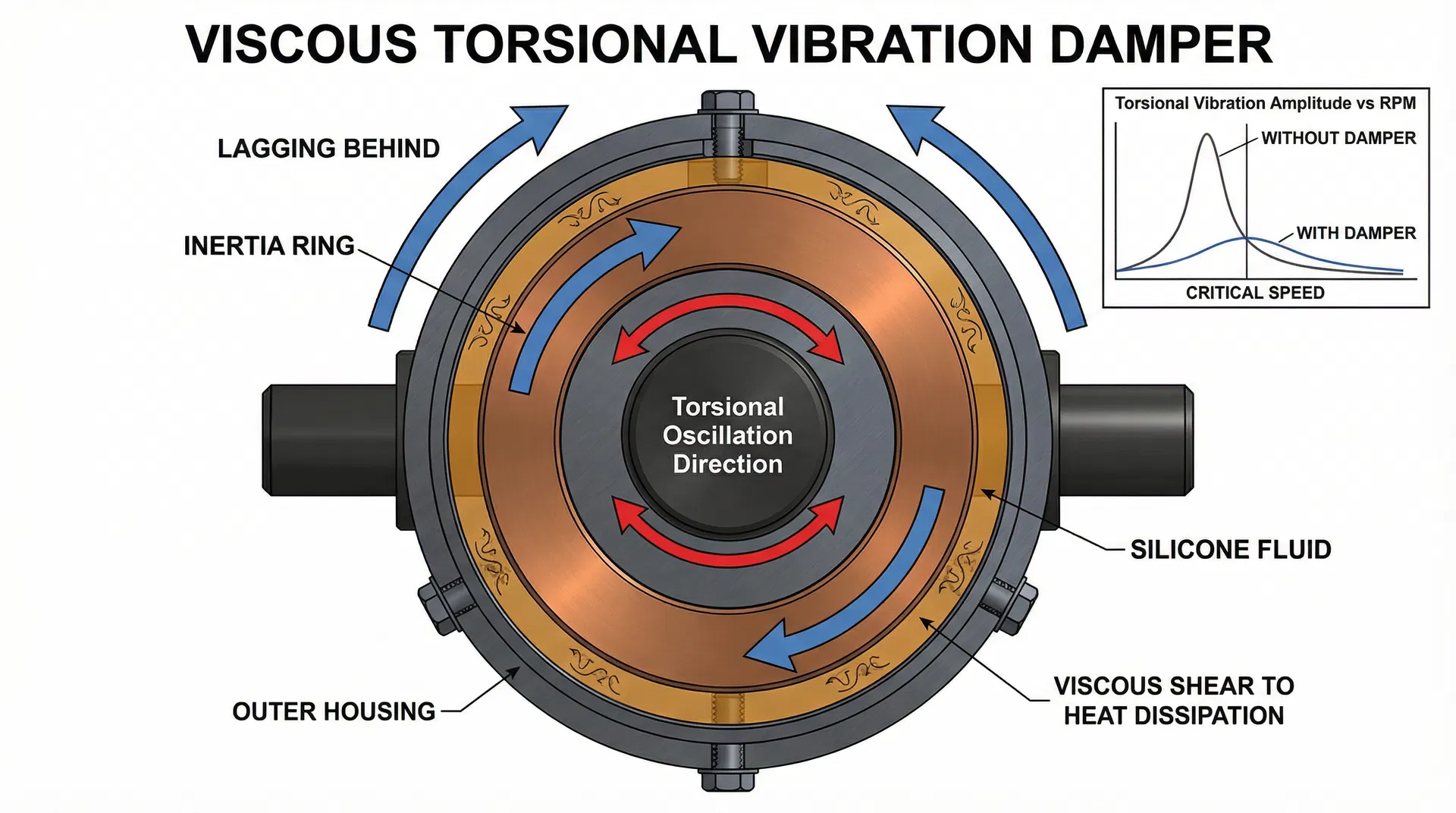

Cross-section of a viscous torsional vibration damper: the outer housing rotates with the crankshaft while the inertia ring lags behind, shearing silicone fluid to convert torsional vibration energy into heat. The inset shows amplitude reduction at critical speed.

These are typically viscous dampers - a housing filled with silicone fluid surrounding an inertia ring. When the crankshaft twists, the inertia ring lags behind, and the viscous shearing of the fluid converts torsional vibration energy into heat. The challenge in F1 is that these dampers need to be incredibly lightweight and compact while still being effective across a wide RPM range.

Tuned Mass Dampers

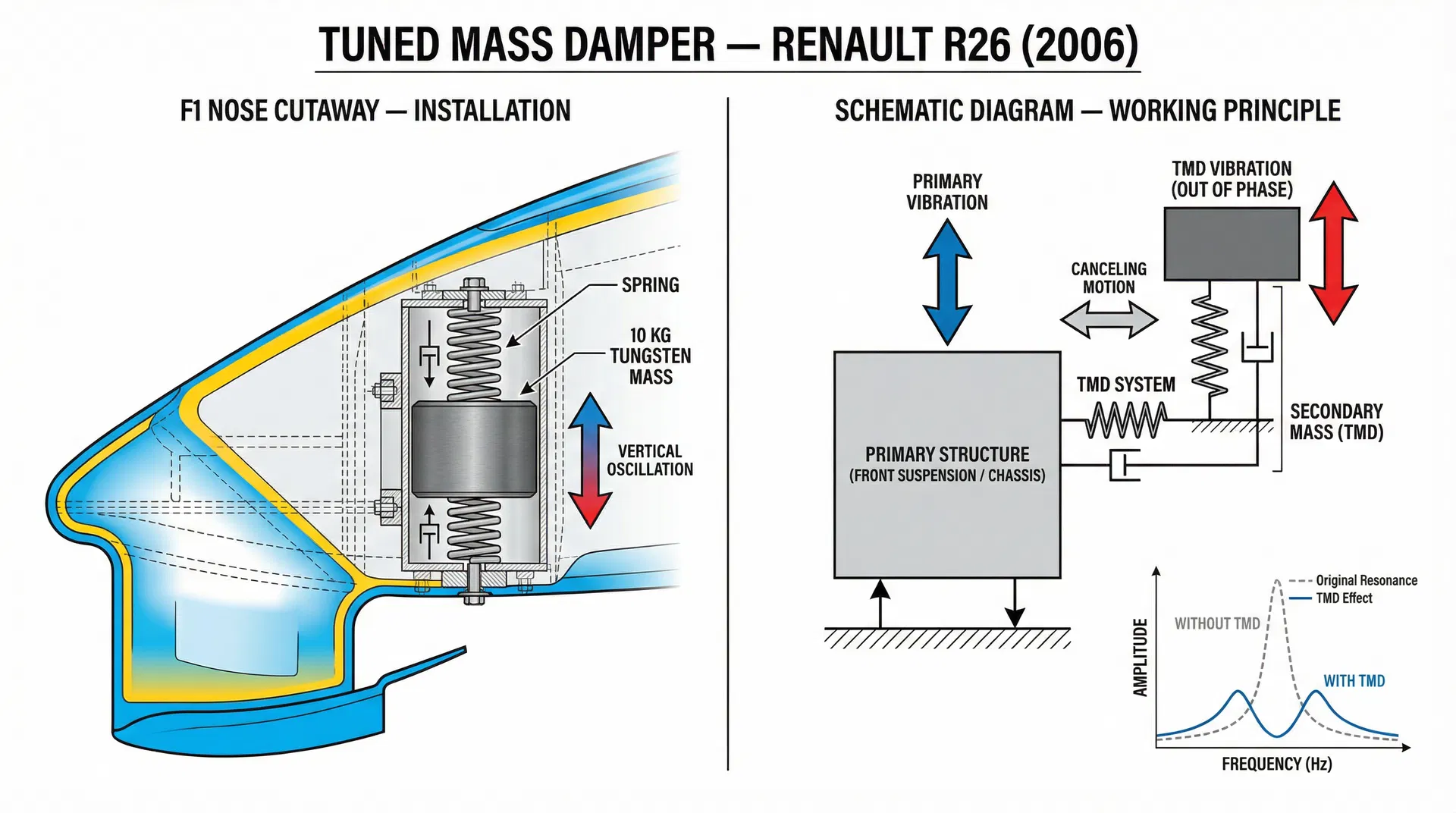

Left: Cutaway of the Renault R26 nose cone showing the 10 kg tungsten mass suspended on a spring inside the nose. Right: Schematic showing how the TMD vibrates 180° out of phase with the primary structure, splitting and reducing the original resonance peak.

Renault famously ran a tuned mass damper (TMD) in the nose of their R26 in 2006 - a spring-mass system tuned to counteract specific vibration frequencies in the front suspension. It worked brilliantly, improving front tire contact and lap times. The FIA banned it mid-season, ruling it a "moveable aerodynamic device," which was controversial since it had nothing to do with aerodynamics. The concept is the same one used in skyscrapers to counteract wind-induced sway - just miniaturized for a race car.

If you've explored the damping section on our cheat sheet, you'll recognize the principle. A TMD works by adding a secondary mass-spring-damper system tuned to the problematic frequency. At that frequency, the TMD vibrates out of phase with the primary structure, effectively canceling the motion.

Active Suspension (2026)

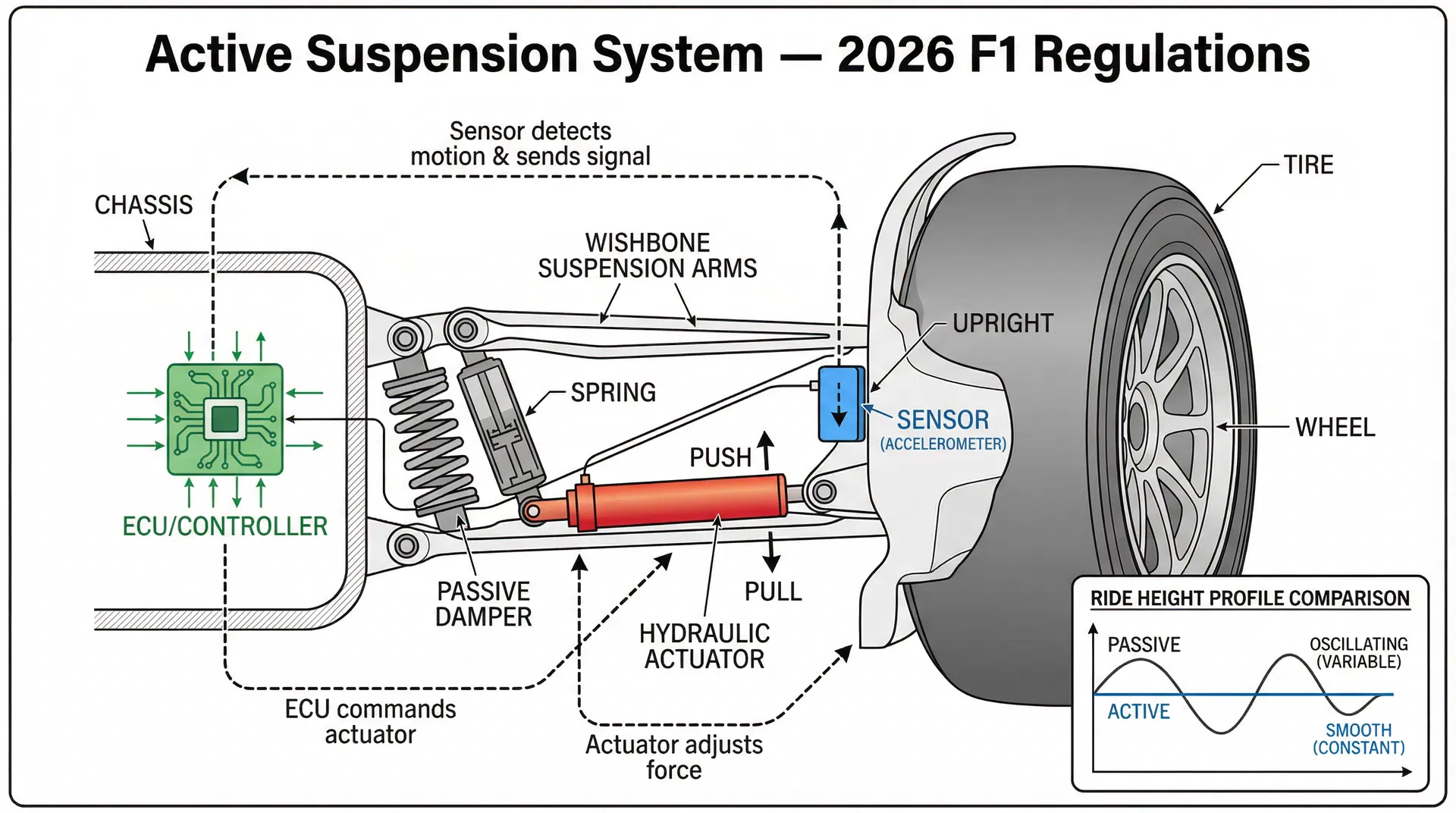

Schematic of an F1 active suspension corner: an accelerometer sensor on the upright feeds data to the ECU, which commands a hydraulic actuator to adjust force in real time. The inset compares passive (oscillating) vs active (smooth) ride height profiles.

The return of active suspension for 2026 is a game-changer for vibration control. Active systems use sensors, actuators, and control algorithms to adjust suspension parameters in real time. They can counteract road inputs, manage ride height for optimal aerodynamics, and suppress unwanted oscillations - all at frequencies that passive systems simply can't match. Think of it as going from a fixed spring-damper system to one with a brain.

Structural Optimization

F1 chassis are carbon fiber monocoques - incredibly stiff and lightweight. Engineers use finite element analysis (FEA) to optimize the structure's natural frequencies, pushing them away from known excitation frequencies. The goal is to avoid resonance by design. Every mounting bracket, every structural panel, every joint is analyzed to ensure the complete vehicle's modal response doesn't create problematic coupling.

Vibration Isolation

For sensitive components like electronics, sensors, and (as Honda is learning the hard way) batteries, vibration isolation mounts are critical. These are essentially small spring-damper systems that decouple the component from the vibrating structure. The key parameter is the transmissibility - the ratio of the response amplitude to the input amplitude.

Transmissibility curves for different damping ratios. Below r = √2 (red zone), vibration is amplified. Above r = √2 (green zone), the mount provides isolation. For effective isolation, the mount's natural frequency must be well below the excitation frequency - exactly the challenge Honda faces with their battery mounting. You want transmissibility well below 1.0 at the frequencies of concern, which means the isolation mount's natural frequency needs to be well below the excitation frequency.

If you've used our SDOF Calculator, you've seen how transmissibility changes with frequency ratio and damping. The same physics applies here - just at a much smaller scale and with much higher stakes.

---

What Makes the Honda Problem So Tricky?

The Honda-Aston Martin situation is a perfect illustration of why vibration engineering is so challenging in complex systems. Let's break down the key factors:

Integration complexity. The power unit didn't vibrate destructively on the dyno. The problem only appeared when the complete car was assembled. This means the vibration transmission path involves the chassis structure, engine mounts, gearbox casing, and battery mounting system all interacting together. Changing any one of those components changes the dynamic response of the entire system.

Packaging constraints. Honda's two-tier battery design was driven by the need for compact packaging. But compact packaging means shorter transmission paths and potentially stiffer connections - which can mean higher natural frequencies and different coupling behavior. There's always a trade-off between packaging efficiency and vibration isolation.

New technology. The 350 kW MGU-K and the elimination of the MGU-H fundamentally changed the power unit's architecture. The battery is much larger and heavier than before, which changes its dynamic characteristics. And the removal of the MGU-H changes the engine's torsional vibration signature, since the MGU-H acted as an additional rotational inertia on the turbocharger shaft.

Time pressure. Honda is trying to solve a complex multi-physics problem with the season opener days away. In an ideal world, you'd instrument the car with accelerometers, run a full modal analysis, identify the problematic modes, and design targeted countermeasures. But F1 doesn't operate in an ideal world - it operates in a world where every day without a fix is a day your competitors are pulling further ahead.

---

The Bigger Picture: Vibration Is Everywhere in Motorsport

The Honda-Aston Martin story is dramatic, but vibration problems are a constant companion in motorsport. Every team, every season, deals with some form of vibration challenge:

Brake vibration from thermal cycling of carbon discs. Driveshaft vibration from torsional loads. Wing flutter from aerodynamic excitation. Steering shimmy from tire imbalance. Exhaust system fatigue from high-frequency vibration. Even the driver's vision can be affected - at certain frequencies, the human eye can't focus properly, which is a real safety concern.

The teams that win championships are often the ones that manage vibration most effectively. It's not glamorous work - you won't see "vibration engineer" in the headlines - but it's absolutely fundamental to making a fast, reliable race car.

---

What Happens Next?

As of this writing, the 2026 Australian Grand Prix is days away, and Honda is working around the clock at Sakura to find a solution. The fact that they've gone public with the details - describing the vibrations as "dangerous" and the situation as "extremely challenging" - tells you how serious this is. [2]

The engineering community will be watching closely. This is a real-world case study in structural dynamics coupling, vibration transmission path analysis, and the challenges of integrating complex systems under extreme packaging constraints. It's the kind of problem that vibration engineers deal with every day in industries from aerospace to automotive - but rarely with this much public scrutiny.

Whether Honda solves it before Melbourne or needs until Suzuka, one thing is certain: the physics of vibration don't care about your race schedule. $F = ma$ doesn't negotiate, natural frequencies don't take weekends off, and resonance doesn't care how much money you've spent.

And honestly? That's what makes this stuff so fascinating.

---

References

[1] S. Mitchell, "Formula 1's Porpoising Problem," Racecar Engineering, Mar. 2, 2022. Link

[2] F. Cleeren and K. Tanaka, "Honda reveals alarming cause of 'extremely challenging' Aston Martin F1 engine issue," Motorsport.com, Feb. 27, 2026. Link

[3] "What we've learned about Honda's 'abnormal' F1 engine problem," The Race, Feb. 27, 2026. Link

[4] L. Larkam, "Honda reveals alarming findings about 'abnormal' F1 engine issue," Crash.net, Mar. 2, 2026. Link
